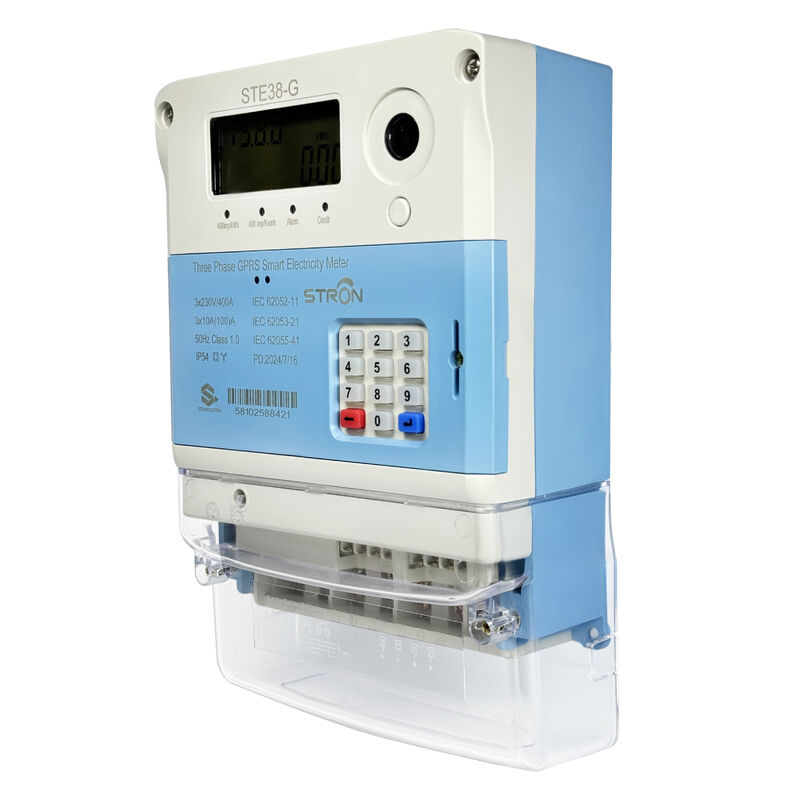

Name: Three Phase STS Prepaid Energy Meter 4G/WiFi Communication for Commercial Use
Brand: Hunan Stron Smart Co., Ltd
SKU: STG38-G
Price: 53.00 USD
Availability: InStock

Three Phase STS Prepaid Energy Meter 4G/WiFi Communication for Commercial Use

محل منبع:

چین

نام تجاری:

STRON SMART

گواهی:

ISO9001 and ISO14001

شماره مدل:

STG38-G

با ما تماس بگیرید

درخواست نقل قول

Products information

The STE38-GS GPRS Three-Phase Prepaid Split-type Electricity Meter is a high-performance device tailored for commercial and industrial power management, consisting of a prepaid keypad meter and a separate Customer Interface Unit (CIU) with the CIU equipped with an RF communication module that provides a coverage range of 300 to 400 meters. It features precise three-phase four-wire system measurement, allowing for real-time access to electricity data such as voltage, current, active/reactive power, and four-quadrant energy via web portals, handheld units, or API-integrated platforms. Compliant with STS standards and equipped with international-grade metering chips, it ensures accurate measurement and reliable prepaid management, while its modular plug-and-play design not only adapts to various smart metering needs but also maintains compliance with data collection and network communication requirements. With the RF module enabling remote on/off control and data synchronization, and a component-replaceable architecture that reduces long-term costs, this meter is perfectly suited for applications in industrial parks, commercial complexes, and large public facilities, serving as a key tool for intelligent power distribution and consumption optimization.

1. Core Functions

STS Token Recharge: Supports secure prepaid recharge via 20-digit token
Comprehensive Monitoring: Neutral current measurement, tamper detection, cover opening detection
Intelligent Control: Remote on/off control, automatic switch-off for low credit or abnormal conditions
Flexible Metering: Bidirectional metering, multi-tariff support (max 8 tariffs)
Convenient Management: Remote reading, real-time clock, credit alarming, detailed event log
Durable Operation: Low-voltage compatible, stable performance in harsh environments

2. Product Features High-Precision Measurement: Class 1.0 accuracy with international high-end metering chips

Robust Protection: IP54 rating (dust and water splash resistance), thickened flame-retardant shell

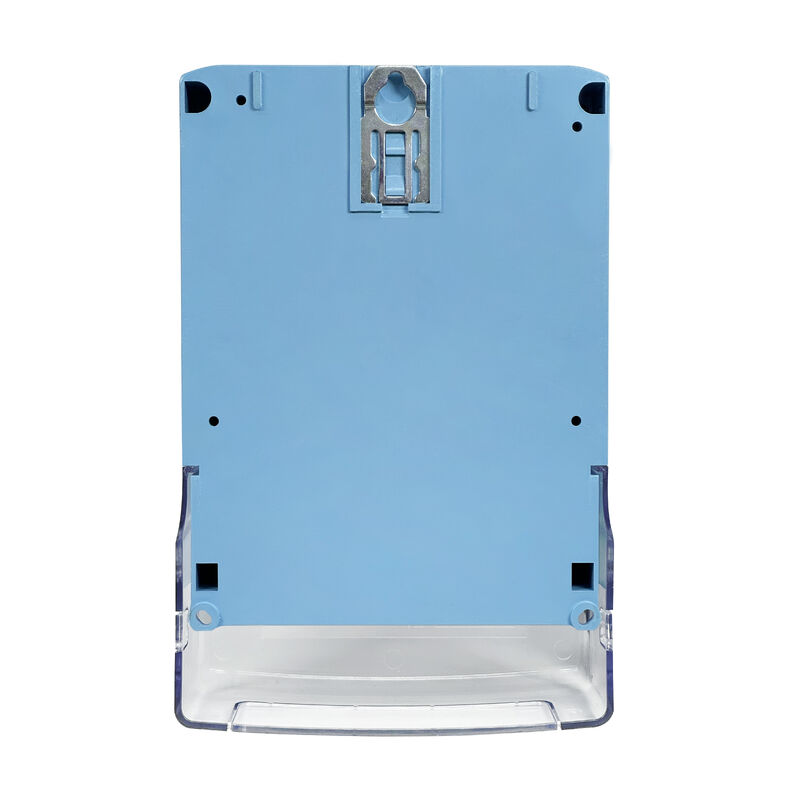

Easy Installation: Fixed triangular positions and hanging hole design on the back

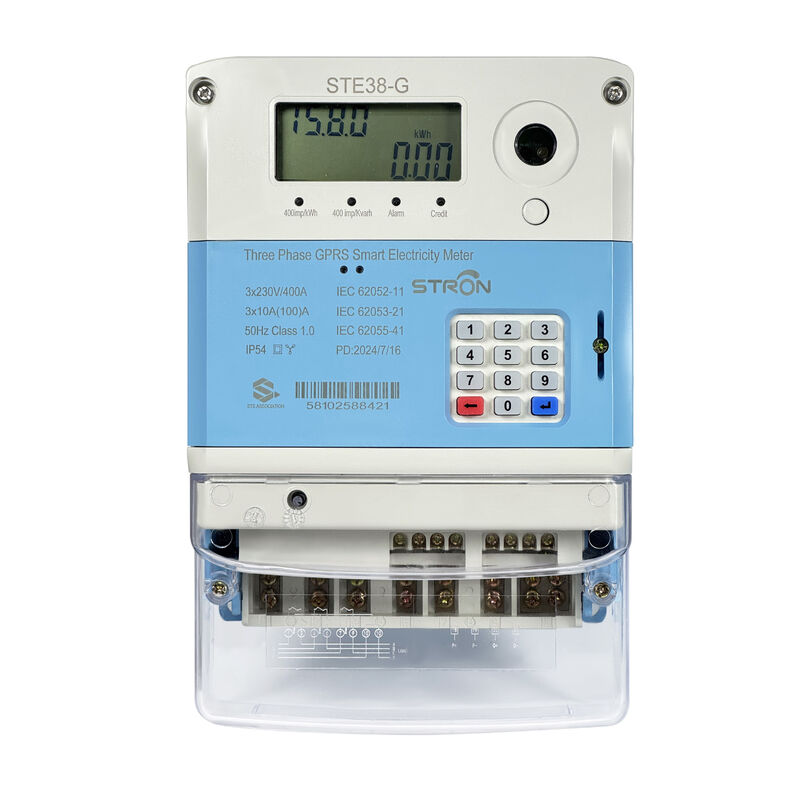

User-Friendly Interface: LCD display, LED indicators, keypad operation, transparent protective cover
Modular Design: Plug-and-play structure for easy component replacement and cost reduction
Reliable Communication: Dual support for GPRS and LoRa RF wireless communication

4. Technical Parameters

Working Voltage: 3x220/380V or 3x230/400V, 70%~120%Un voltage range
Current Rating: 3x5(45)A or 3x10A(100)A
Frequency: 50Hz
Active Energy Constant: 400imp/kWh
Power Consumption: Voltage circuit <2W/<8VA; Current circuit <1VA
Temperature Range: Operation (-25℃~70℃), Storage (-40℃~85℃)
Electromagnetic Compatibility: 4kV AC insulation strength, 8kV impulse voltage, 8kV contact discharge/16kV air discharge
Protection Class: Class II

5. Customer Interface Unit (CIU)

Material: ABS
Dimension: 6.8cm (W) × 12cm (L) × 2.9cm (H), Weight: 0.1KG
Power Supply: AC power with adapter or 4pcs AA LR6 1.5V dry batteries
Display: Dot matrix LCD, LED communication status indicator, buzzer for alerts
Working Environment: 0~50℃ temperature, 10%~90% humidity

6. Application Scenarios

Ideal for industrial parks, commercial complexes, large public facilities, residential communities, SMEs (supermarkets, workshops), rural areas, municipal smart grids, factories (sub-metering), and off-grid/hybrid solar systems. Suitable for both small commercial setups and large-scale industrial/utility projects.

7. Vending & Recharge System

Multiple Recharge Methods: Over-the-counter (recharge points), mobile top-up (M-PESA, Alipay, MTN, Airtel via API integration), door-to-door service (mobile vending units)
System Functions: Data management (meters, prices, customers), account management (password modification, sub-accounts), report generation (receipts, monthly summaries, payment reports)
Security: Microsoft SQL Server backend database, account permission management, API support for function expansion

8. Advanced AMI Solution

Integrates with STRON's cloud-based management platform for remote data upload (via GPRS), control instruction issuance, remote operation and maintenance, and intelligent power management. Enables load control, data analytics, and seamless integration into smart grid ecosystems.
